Home > Products > Pressure Gauge Series > Shock Resistant Pressure Gauge

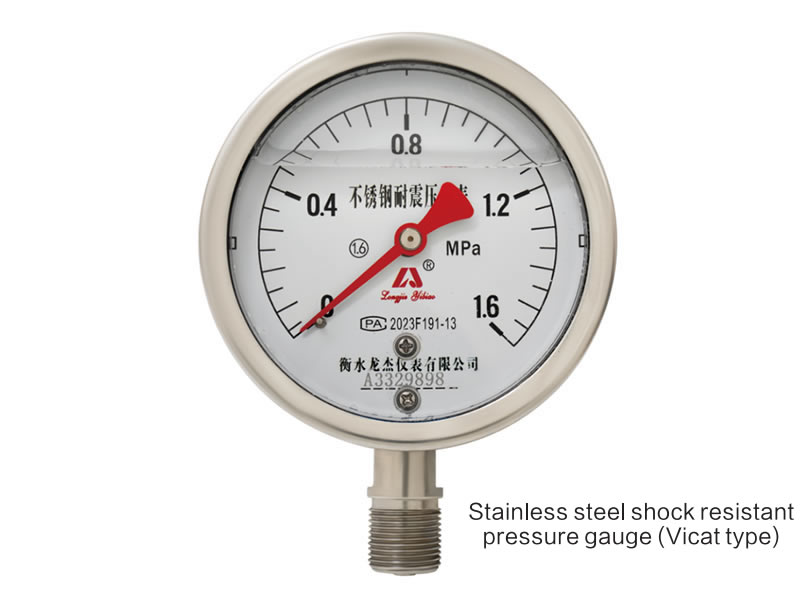

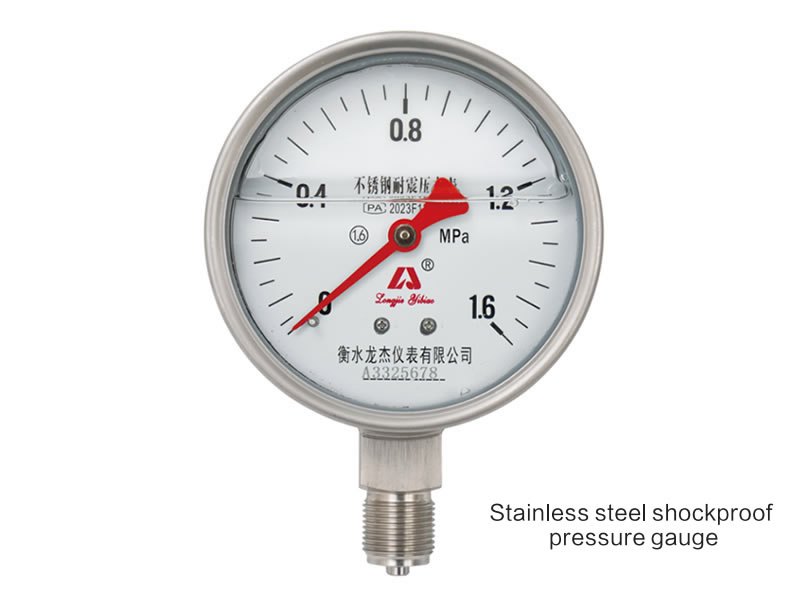

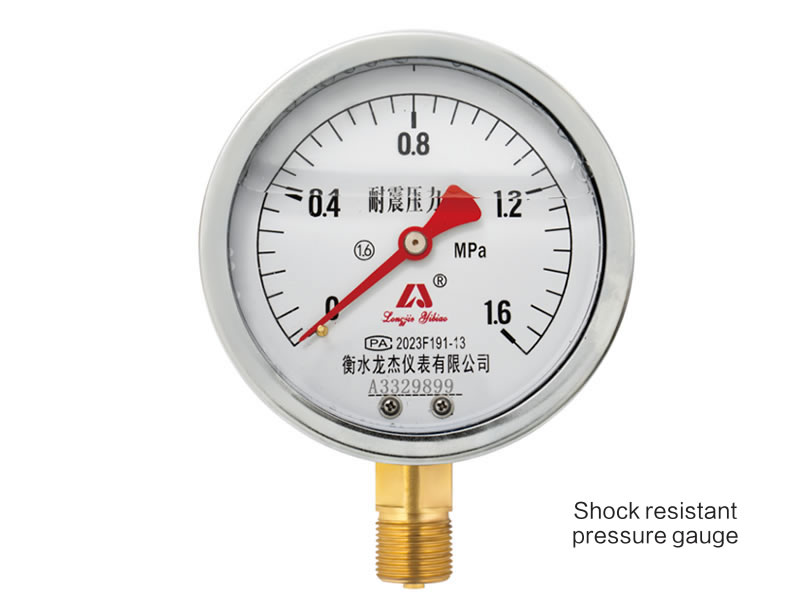

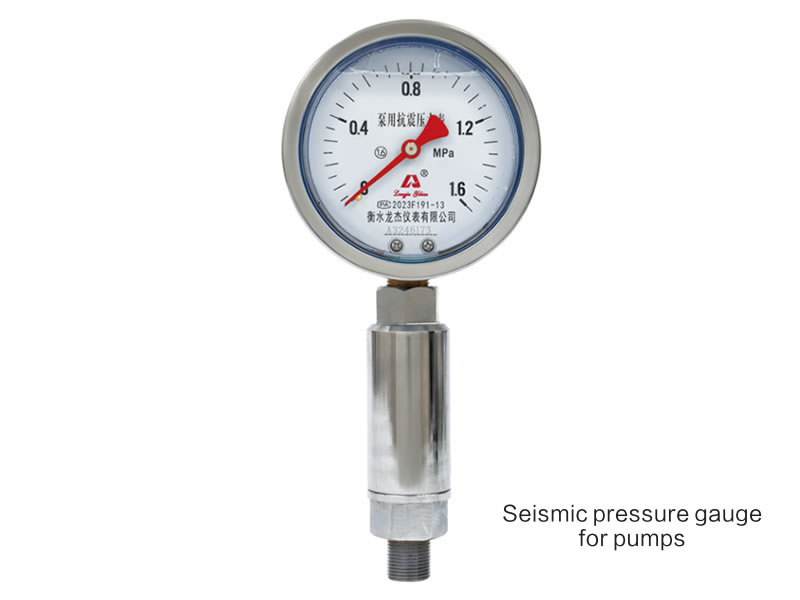

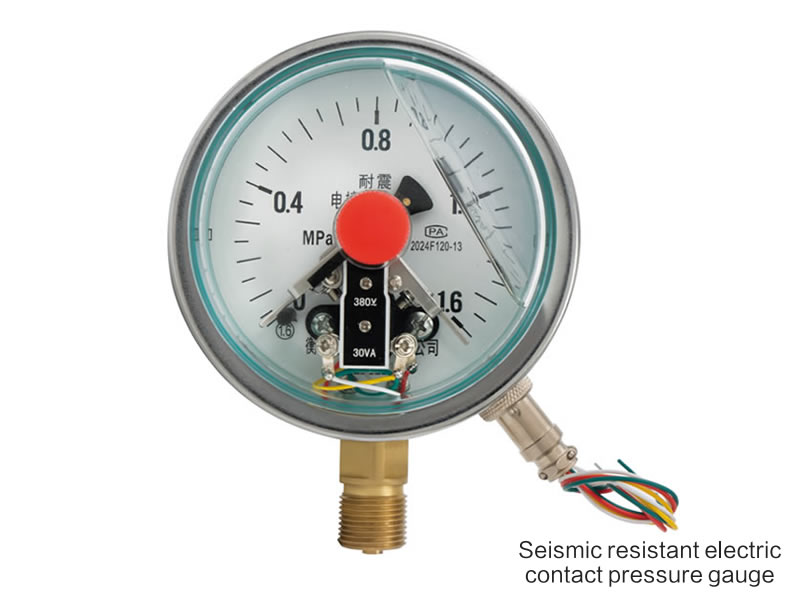

Applied to machinery used for detecting hydraulic pressure, such as water pumps, air compressors, hydraulic machinery, engines, winches, etc. Especially suitable for mechanical equipment working under vibration.
Company Name:Hengshui Longjie Instrument Co., Ltd.Inquiry Hotline:+86 17631885938Product List
productDetailed Description
Surface diameter: 3"(60mm); 4"(100mm), 5"(150mm)
Connection method: Radial, axial with front edge
Casing: Stainless steel shell, stainless steel screwin threaded ring
Range: -0.1, 0.1, 0.16, 0.25, 0.4, 0.6, 1, 1.6, 2.5, 4, 6, 10, 16, 25, 40, 60
Scale: Mpa
TableWindow: Polycarbonate surface or tempered glass surface
Movement: Copper core or stainless steel core
Contact medium part: Copperpipe,copperjointor stainlesssteelpipe,stainless steeljoint
FiIgmedium: Glycerol or silicone oil(may not be filled with oil)
Connetingthread: 1/8", 1/4", 3/8"G, PT, NPTM10x1, M14x1.5, M20x1.5, 1/2 (Other specifications can be customized)
Accuracy: 3"(60mm)-2.5%, 4"(100mm), 5"(150mm)-1.6%
Product Inquiry
