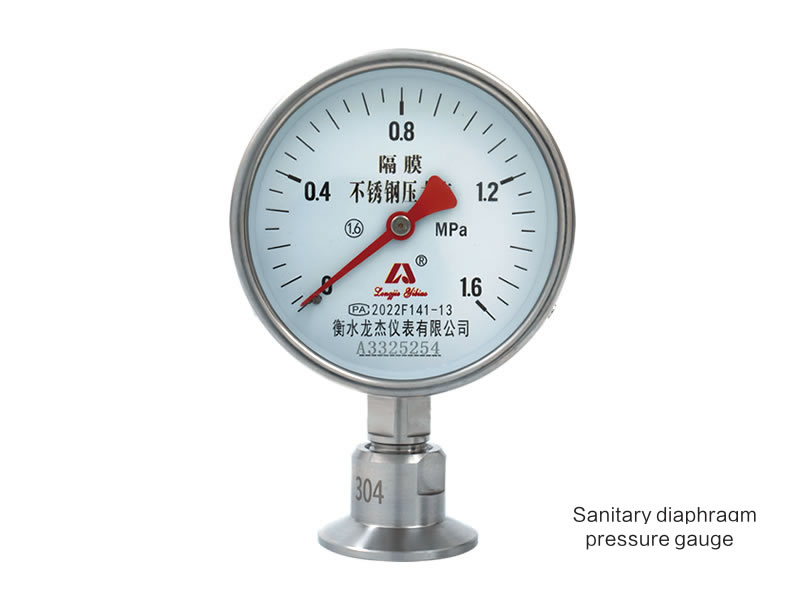

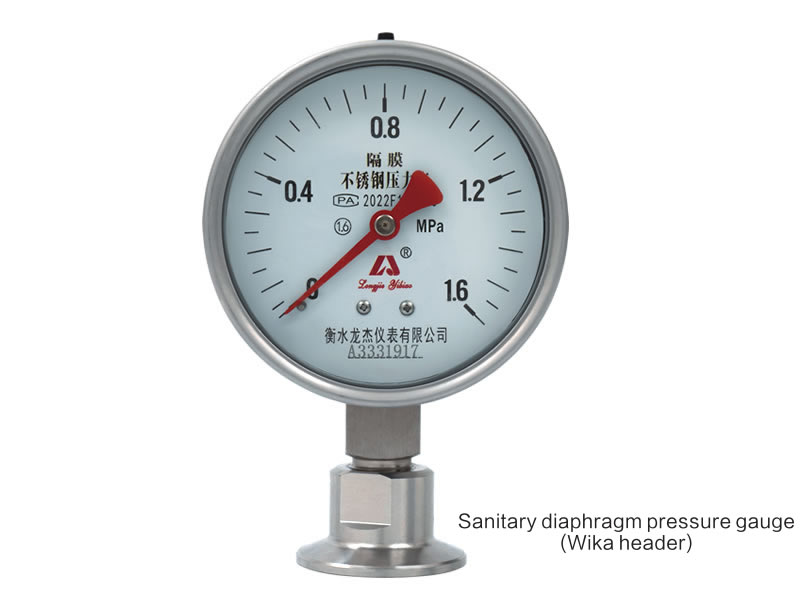

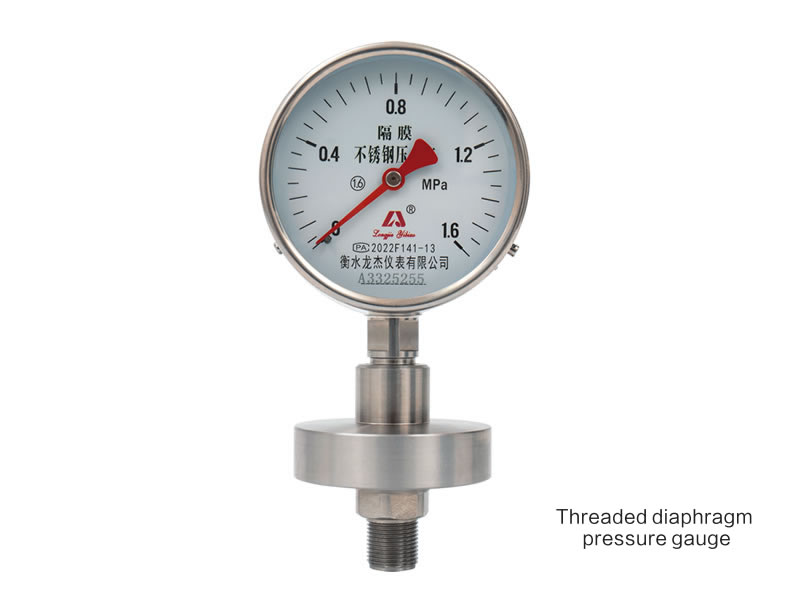

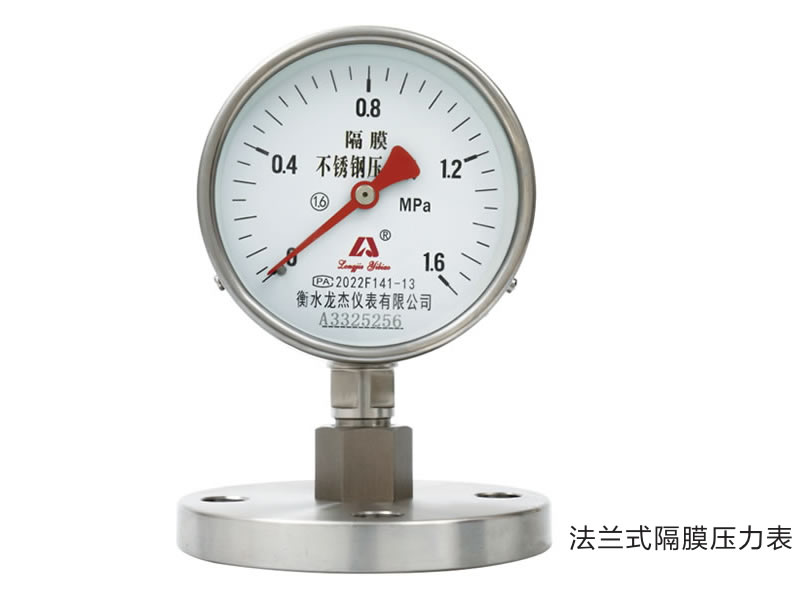

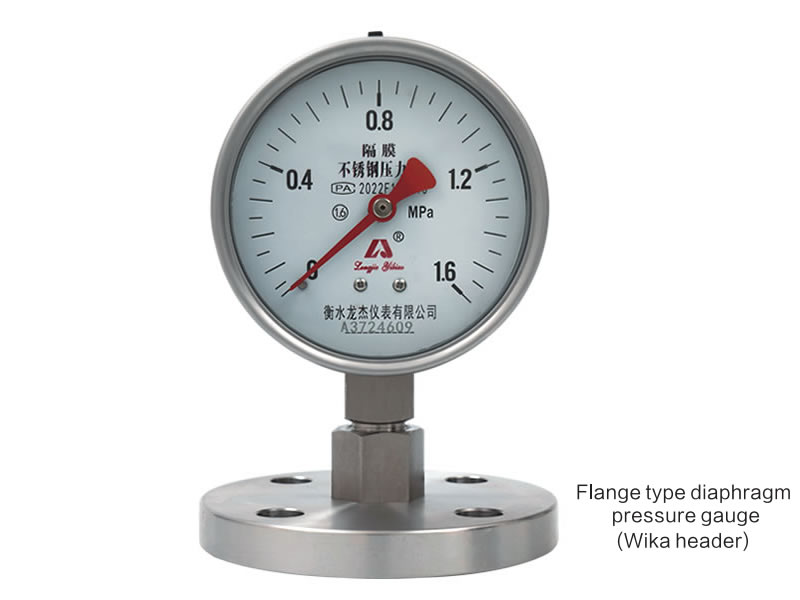

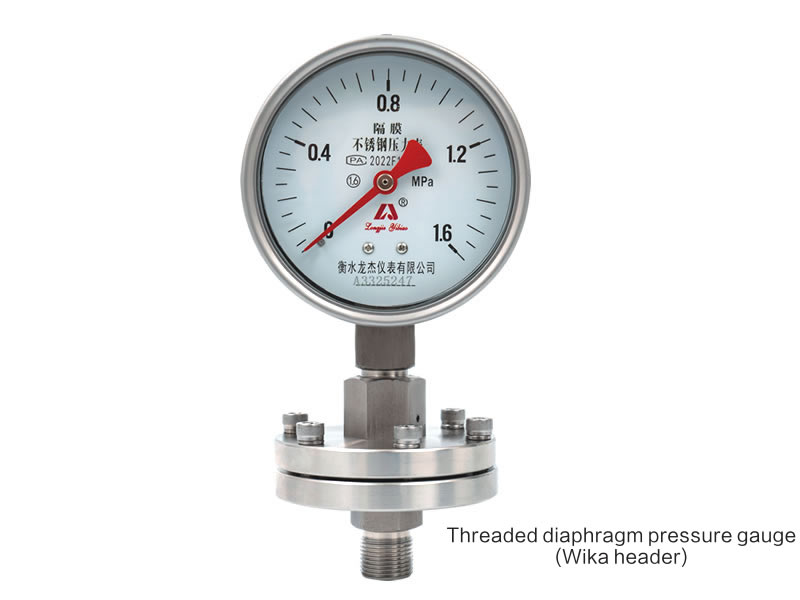

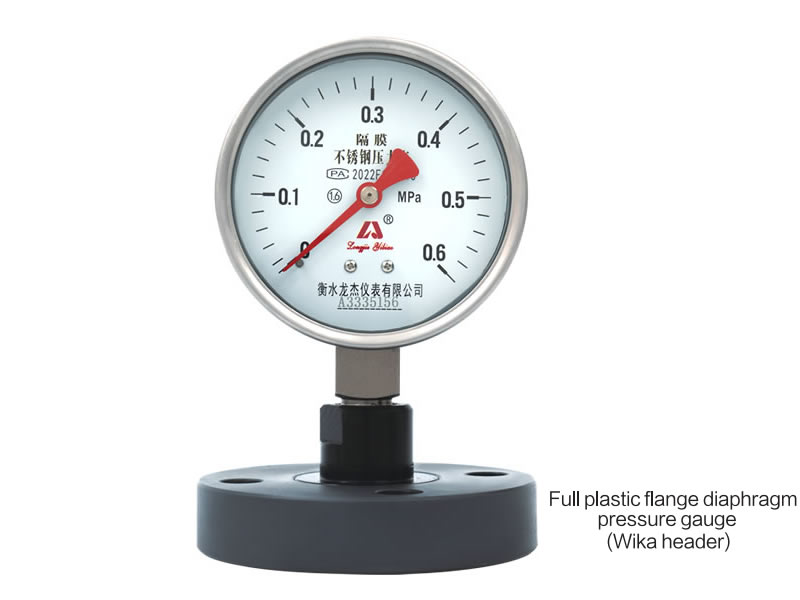

For measuring the pressure of media with strong corrosion, high temperature, high viscosity, easy crystallization, easy solidification, and solid floating matter, as well as situations where it is necessary to avoid direct entry of the measuring medium into the universal pressure instrument and prevent sediment accumulation and easy cleaning, a diaphragm gauge consisting of a diaphragm isolator and a universal pressure instrument system must be used.
Company Name:Hengshui Longjie Instrument Co., Ltd.Inquiry Hotline:+86 17631885938Product List
productDetailed Description
Surface diameter: 3"(60mm), 4"(100mm), 5"(150mm)
Connection method: Radial
Casing: 304 Stainless steel
Range: -0.1, 0.1, 0.16, 0.25, 0.4, 0.6, 1, 1.6, 2.5, 4, 6, 10, 16, 25, 40, 60
Scale: Mpa
Flange Material: 304 stainless steel or 316 stainless steel
Membrane material: 304 stainless steel or 316 stainless steel
Contact medium part: Copperpipe,copperjointorstainlesssteelpipe,stainlesssteel joint
Filling inside the diaphragm body: Glycerol or silicone oil or not filled with oil
Process connection: Gansi buckle and flange specifications can be customized according to needs
Accuracy: 1.6%, 2.5%
