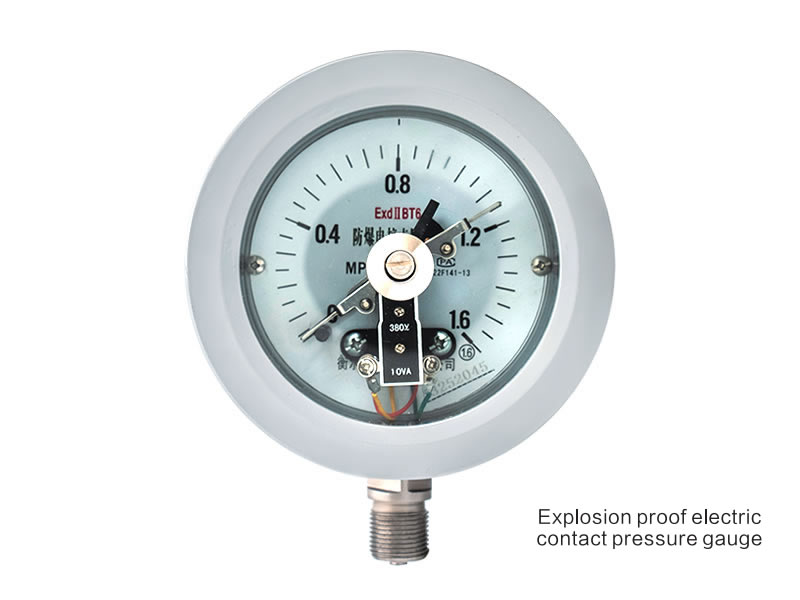

Explosion Proof Pressure Gauge

Dial diameter: 100mm

Product type: Radial

Measuring range: Range of 0.3-60MPa

Interface material: 304 stainless steel

Shell material: Aluminum alloy

Explosion proof grade: 100MM dial explosion-proof rating (CT6) 160Mm dial explosion-proof rating and (Bt6)

Accuracy class: 1.6

Thread size: M20 * 1.5 (special thread can be customized)

Electricainterface: M20* 1.5 or 1/2 (i.e.4 points)

Scale range: 0~0.1; 0~0.16; 0~0.25; 0~0.4; 0~0.6; 0~1.0; 0~1.6; 0~2.5; 0~4; 0~6; 0~10; 0~16; 0~25; 0~40;
0~60; -0.1~0; -0.1~0.06; -0.1~0.15; -0.1~0.3; -0.1~0.5; -0.1~0.9; -0.1~1.5; -0.1~2.4MPA;
0-4KPA; 0-6KPA; 0-10KPA; 0-16KPA; 0-20KPA; 0-25KPA; 0-40KPA; 0-60KPA

Controlmode: Upper and lower limit slow contact switch (passive contact)

Maximum working voltage: DC220C/AC380V/24V

Contact power: 10VA/30VA/0.25A

Working Position: Vertical installation

Protection Grade: Ip65

Environmental conditions for use: -40-70 C, relative humidity not exceeding 80%, and explosive mixture should belong to B level T6 group or below or llc level T6 group or belowThe working vibration and rapid pulsation of the measured medium have no effect on the reliable operation of the instrument contacts.

Dielectnc slrength: 50HZ sine AC 200oV for one minute

Weight: 100MM diameter 2.5KG, 160MM diameter 5KG
