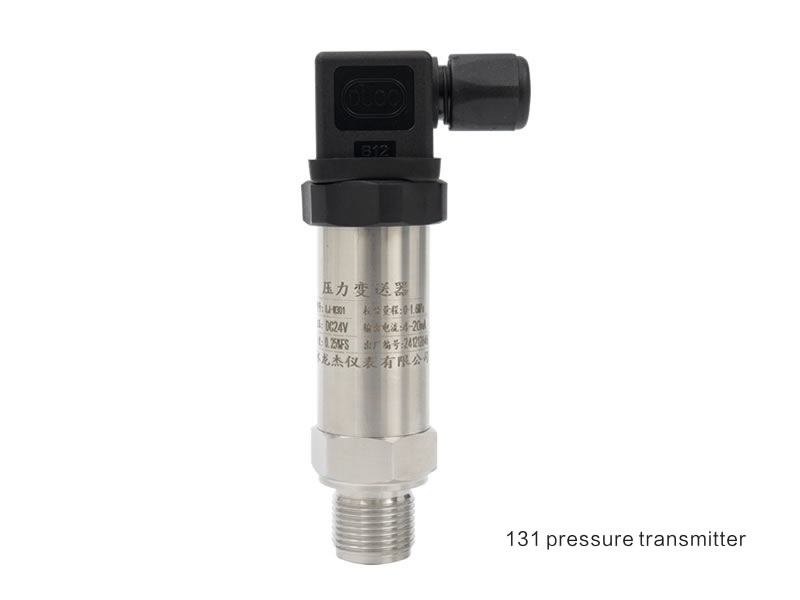

Adopting industrial explosion-proof shell, high-quality diffused silicon core, digital compensation circuit, display, stable output, capable of converting physical pressure parameters such as gas and liquid sensed by pressure sensors into standard electrical signals (such as 4-20m ADC, etc.) to supply secondary instruments such as indicator alarms, recorders, regulators for measurement, indication, and process adjustment.
Company Name:Hengshui Longjie Instrument Co., Ltd.Inquiry Hotline:+86 17631885938Product List
productDetailed Description
Adopting industrial explosion-proof shell, high-quality diffused silicon core, digital compensation circuit, display, stable output, capable of converting physical pressure parameters such as gas and liquid sensed by pressure sensors into standard electrical signals (such as 4-20m ADC, etc.) to supply secondary instruments such as indicator alarms, recorders, regulators for measurement, indication, and process adjustment.
Selection method
| Code | Model | Product name |
| GSK | 131 | Ceramic pressure transmitter |
| GSK | 131 | Diffuse silicon pressure transmitter |
| GSK | 131S | Diffusion silicon digital pressure transmitter |
| GSK | 131G | High temperature pressure transmitter |
| GSK | 131MC | Sanitary diaphragm pressure transmitter |
| GSK | 131PM | Flat membrane pressure transmitter |
| Connection method | |||
| M | M20x1.5、M12x1.5s M14x1.5 | ||
| G | G1/4、G1/2、1/2NPT、1/4NPT | ||
| Y | Special agreement | ||
| 1 | Analog signal 4-20mA two-wire system | ||
| 2 | 0~5V,1-5V,0~10V | ||
| 3 | M1 | No display | |
| M2 | Liquid crystal display | ||
| M3 | Accuracy class | ||
| 1 | ±0.5% | ||
| 2 | ±0.25% | ||
Characteristic
Wide range coverage;
All stainless steel structure, compatible with different media;
High precision and good stability;
Strong anti-interference design.
The enclosure protection levelis Ip65;
Resistant to impact, vibration, and suitable for equipment matching;
Economical in terms of cost-effectiveness, providing OEM customization.
| Range of measurement | -0.1-60MPa | Accuracy | ±0.25%FS、±0.5%FS |
| Stability | w0.2%/year | Overload | 150%FS |
| Power supply range | 12-32VDC | Lead method | Haosman |
| Protection grade | Ip65 | Relative humidity | 0-90% |
| Operation temperature | -30%-80% | Storage temperature | -40℃~120℃ |
