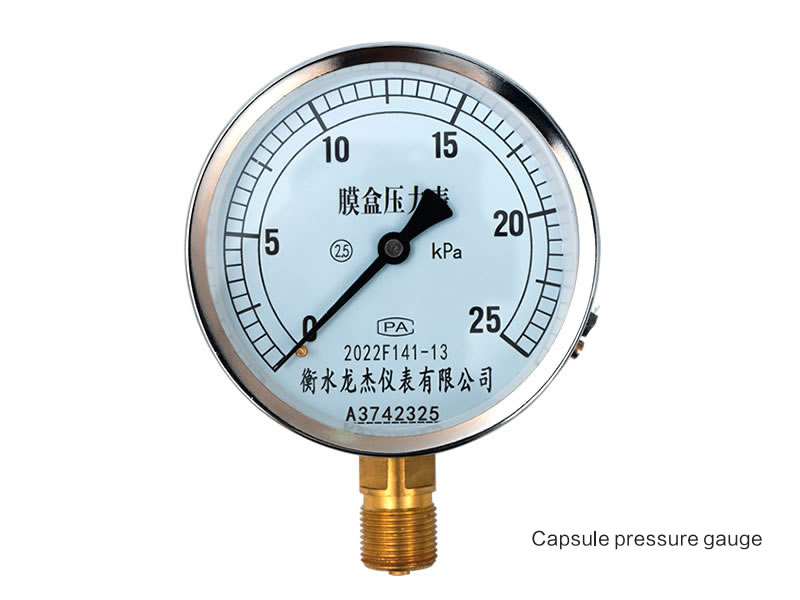

The membrane box pressure gauge uses a membrane box as a sensitive element for measuring smallpressures. The measurement of micro pressure and negative pressure of non corrosive and non explosive gases on copper and copper alloys is widely used in boiler ventilation, gas pipelines, combustion devices, and other similar equipment.

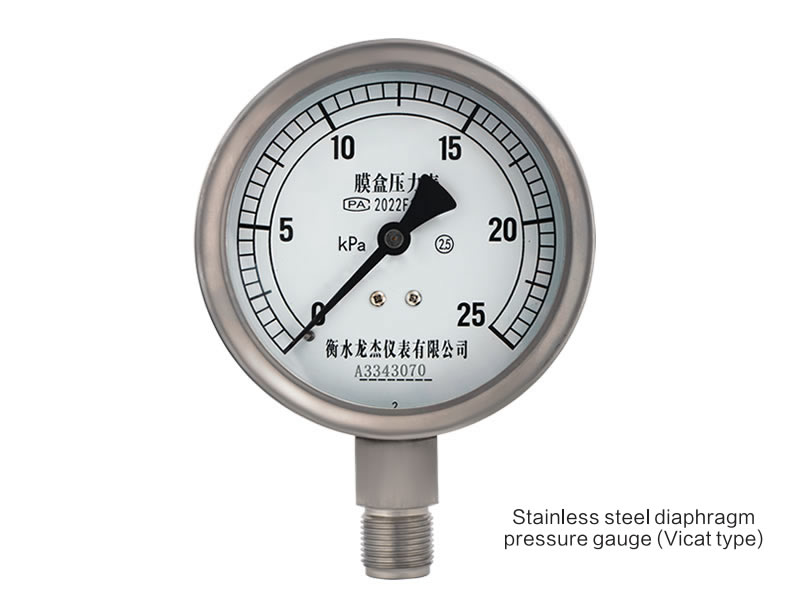

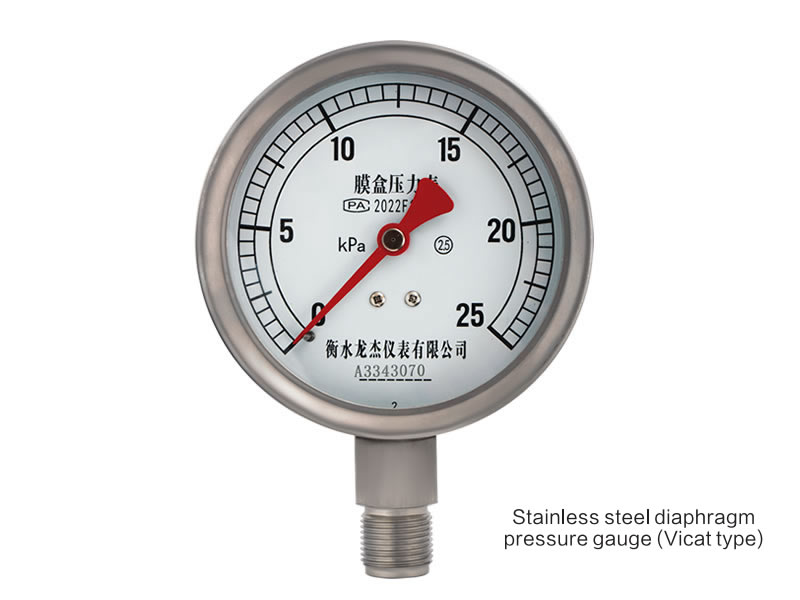

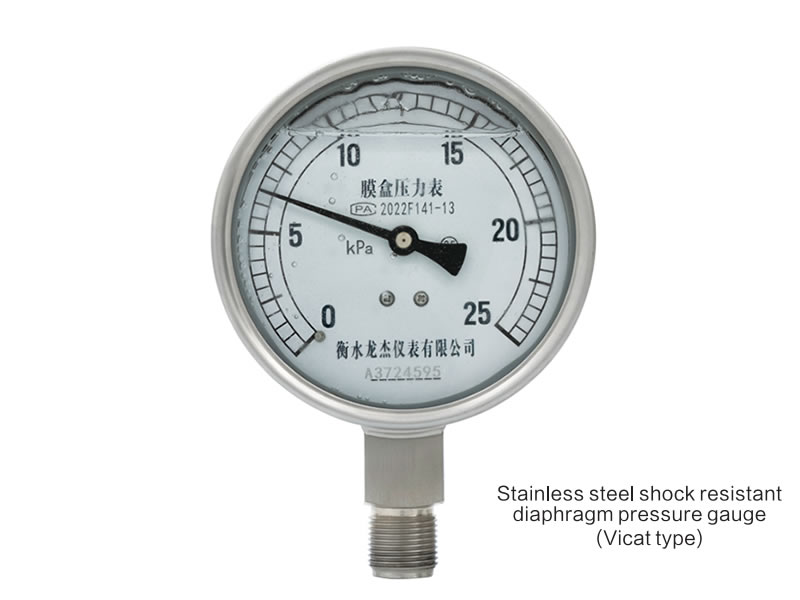

The stainless steel diaphragm pressure gauge is made of stainless steel material according to the pressure system and housing. Applied to the measurement of micro pressure and negative pressure of various gas media in processes with high corrosion resistance requirements.
Company Name:Hengshui Longjie Instrument Co., Ltd.Inquiry Hotline:+86 17631885938Product List
productDetailed Description
Surface diameter: 3"(60mm), 4"(100mm), 5"(150mm)
Connection method: Radial, axial
Casing: Electroplating shell, electroplating ring (fixed with screws) or stainless steel shell, stainless steel ring (fixed with screws)
Range: 0-6KPa、0-10KPa、0-16KPa、0-25KPa、0-40KPa、0-60KPa、0-100KPa (Positive and negative pressure)
Table Window: Snap in plastic surface or glass
Movement: Copper or stainless steel
Contact medium part: Copper or stainless steel membrane box, copper or stainless steel joint
Connecting thread: 1/4", 3/8"BSP, BSPT, NPT, M14x1.5, M20x1.5, 1/2 (Other specifications can be customized)
Accuracy: 2.5%
