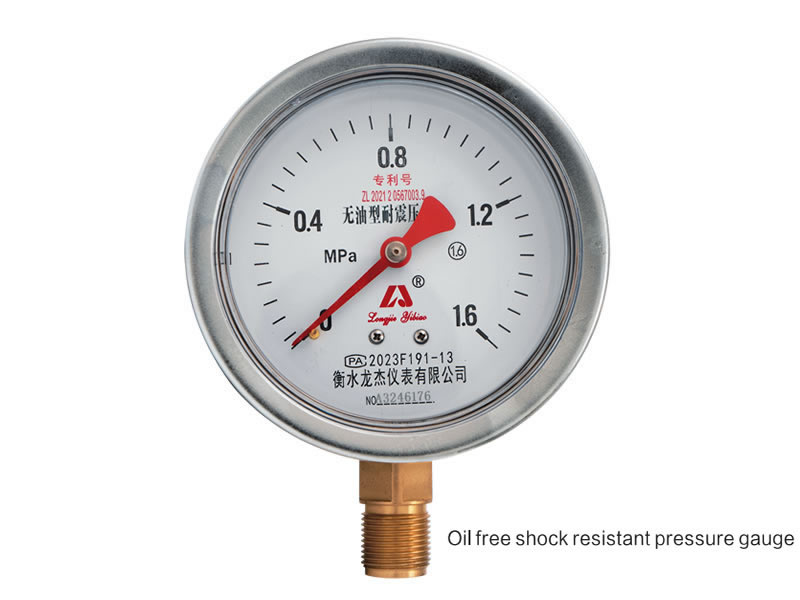

Home > Products > Pressure Gauge Series > Oilfree Shock Resistant Pressuregauge
Applied to machinery used for detecting hydraulic pressure, such as water pumps,air compressors, hydraulic machinery, engines, winches, etc. Especially suitable for mechanical equipment working under vibration.
Company Name:Hengshui Longjie Instrument Co., Ltd.Inquiry Hotline:+86 17631885938Product List
productDetailed Description
Surface diameter: 3"(60mm), 4"(100mm), 5"(150mm)
Connection method: Radial, axial with front edge, radial with back edge
Casing: Stainless steel shell, stainless steel screw in threaded ring
Range: -0.1, 0.1, 0.16, 0.25, 0.4, 0.6, 1, 1.6, 2.5, 4, 6, 10, 16, 25, 40, 60
Scale: Mpa
TableWindow: Polycarbonate surface or tempered glass surface
Movement: Copper core or stainless steel core
Contact medium part: Copperpipecopperjointorstainlesssteelpipestainlesssteeljoint
Filngmedium: No need to fill with oil
Connecting thread: 1/8", 1/4", 3/8"G, PT, NPTM10x1, M14x1.5, M20x1.5, 1/2 (Other specifications can be customized)
Accuracy: (100mm) -1.6%
