Home > Products > Pressure Gauge Series > General Pressure Gauge

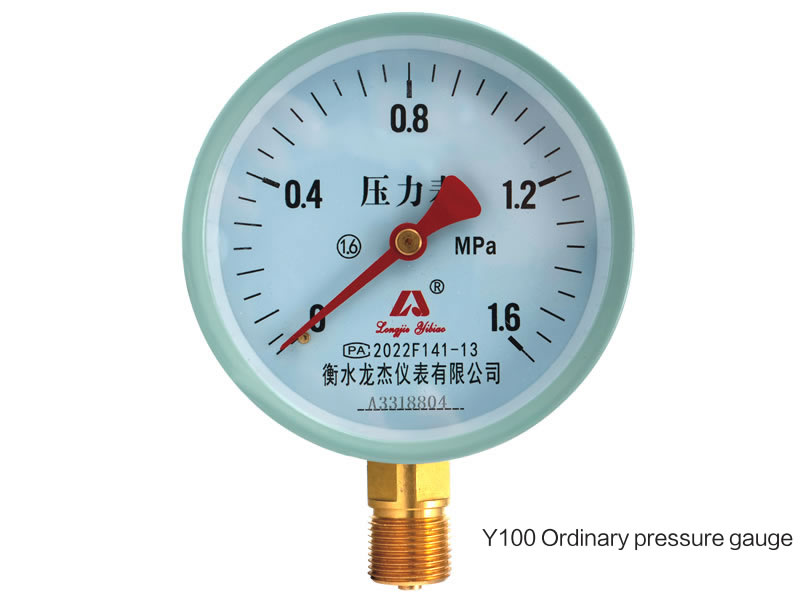

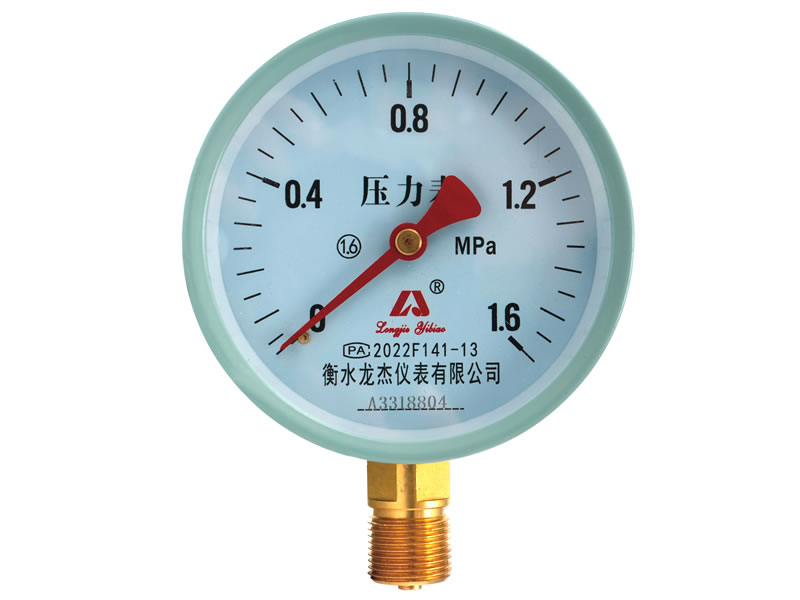

This product is suitable for measuring the pressure of non-crystalline, non-solidifying liquids, vapors and gases that do not corrode copper alloys and soldering materials.It is widely used in industries such as petroleum, chemical engineering,metallurgy, power, food, medicine, environmental protection, machinery, fire protection and HVAC.
Company Name:Hengshui Longjie Instrument Co., Ltd.Inquiry Hotline:+86 17631885938Product List
productDetailed Description
Surface diameter: 3"(60mm), 4"(100mm), 5"(150mm), 6"(200mm), 7"(250mm)

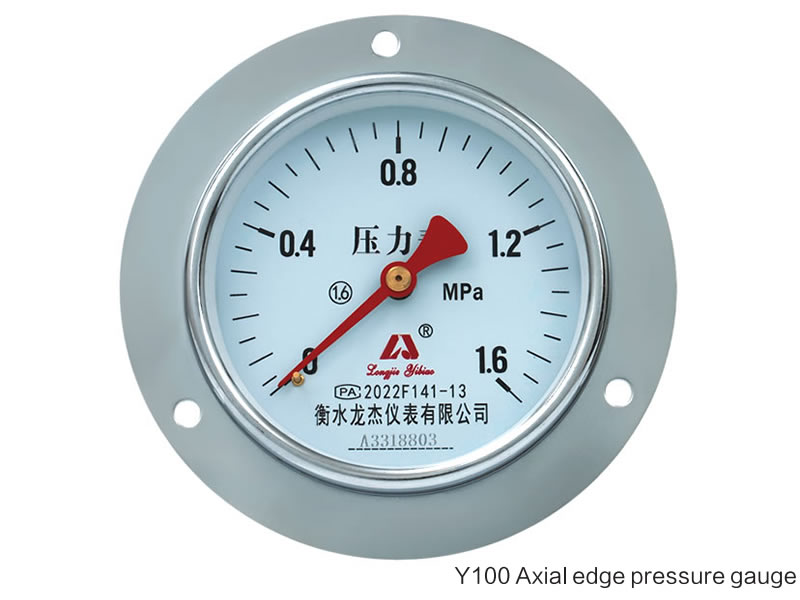

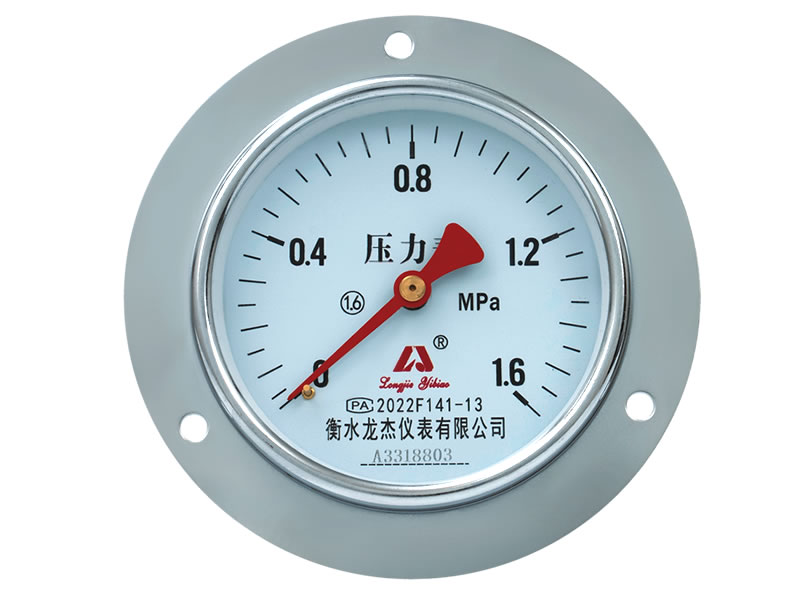

Connection method: Radial, axial with front edge
Casing: Iron shell, iron ring (fixed with screws) or electroplated shell (fixed with screws)
Range: -0.1, 0.1, 0.16, 0.25, 0.4, 0.6, 1, 1.6, 2.5, 4, 6, 10, 16, 25, 40, 60
Scale: Mpa
Table Window: Glass
Movement: Copper
Contact medium part: Copper tube, Copper joint
Connecting thread: m10x1, m14x1.5, m20x1.5, 1/2 (Other specifications can be customized)
Accuracy: 1.6% - 2.5%
