Home > Products > Temperature Gauge Series > WSS Series Bimetallic Thermometer

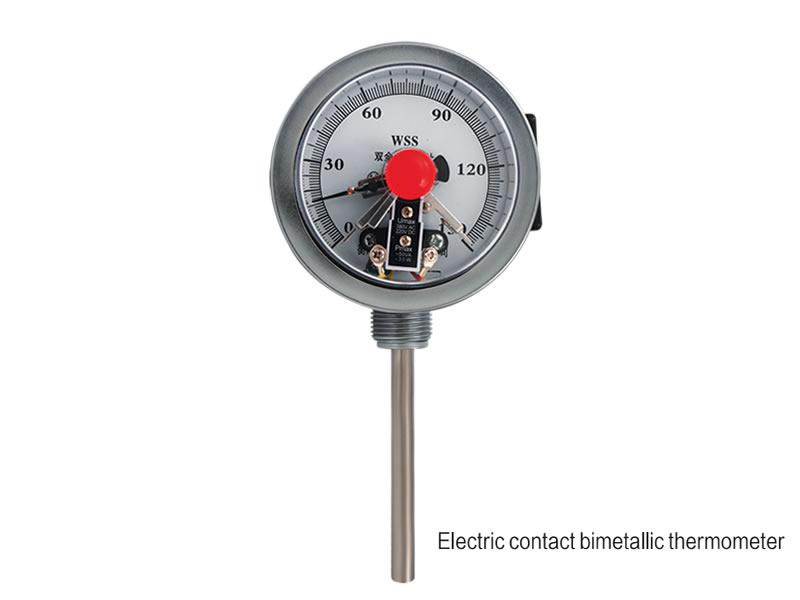

A bimetallic thermometer is an on-site detection instrument used to measure low to medium temperatures.It can directly measure the temperature of various media such as liquids, gases, or steam in ships and other industrial production processes. The electric contact bimetallic thermometer can automatically send control signals, cut off power or alarm when the working temperature exceeds the given value.
Company Name:Hengshui Longjie Instrument Co., Ltd.Inquiry Hotline:+86 17631885938Product List
productDetailed Description
A bimetallic thermometer is an on-site detection instrument used to measure low to medium temperatures. It can directly measure the temperature of various media such as liquids, gases, or steam in ships and other industrial production processes. The electric contact bimetallic thermometer can automatically send control signals, cut off power or alarm when the working temperature exceeds the given value.
| Model | Dial diameter (mm) | Measurement ranged ℃ | Dividing value ℃ | Protection tube diameter mm(d) | Insertion length mm(u) | Install thread | Accuracy |
| WSS-301、302、303 | -80-40 | 2 | Φ6 Φ8 Φ10 Φ12 Φ14 Φ16 | ≥50mm | M16x1.5 M20x1.5 M27x2 | 1.5 | |
| WSS-311、312、313 | -40-80 | 2 | ≥50mm | ||||
| WSS-381、382、383 | 0-50 | 1 | ≥50mm | ||||
| WSS-401、402、403 | Φ60 | 0-100 | 2 | ≥50mm | G½ G¾ | ||
| WSS-411、412、413 | Φ100 | 0-150 | 2 | ≥50mm | |||
| WSS-481、482、483 | Φ150 | 0-200 | 5 | ≥50mm | |||
| WSS-501、502、503 | 0-300 | 5 | ≥50mm | NPT½ NPT¾ | |||
| WSS-511、512、513 | 0-400 | 10 | ≥50mm | ||||
| WSS-581、582、583 | 0-500 | 10 | ≥50mm |
