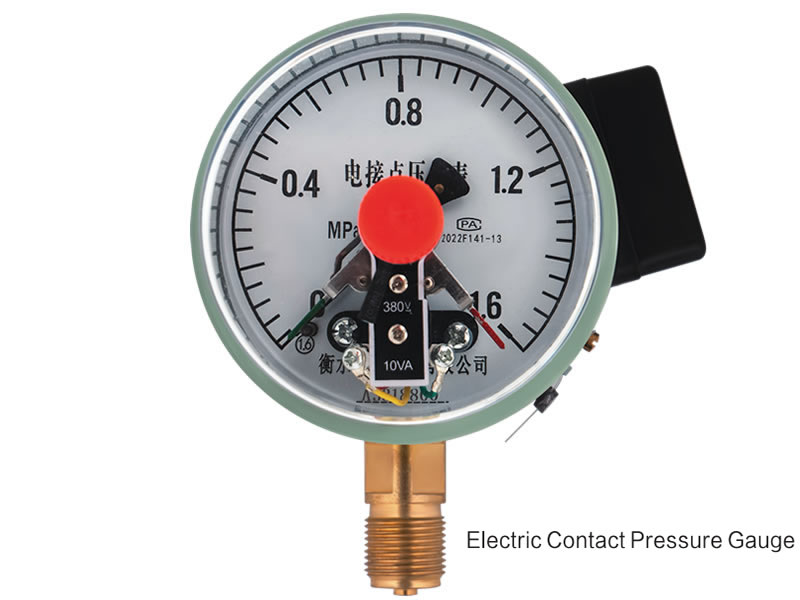

Electric Contact Pressure Gauge

Applied to the working conditions allowed by general pressure gauges.

Equipped with corresponding electrical components, it can automatically control the output signal and system under test.

Product List

product

Detailed Description

Surface diameter: 3"(60mm), 4"(100mm), 5"(150mm)

Connection method: Radial, axial with front edge

Casing: Iron shell, iron ring (fixed with screws) or electroplated shell (fixed with screws)

Range: -0.1, 0.1, 0.16, 0.25, 0.4, 0.6, 1, 1.6, 2.5, 4, 6, 10, 16, 25, 40, 60

Scale: Mpa

External: Adjustable single or double electrical contacts

Voltage: 4V、220V、380V

Table Window: Polycarbonate surface

Movement: Copper

Contact medium part: Copper tube, copper joint

Connecting thread: 1/4", 3/8"G, PT, NPT, M14x1.5, M20x1.5, 1/2 (Other specifications can be customized)

Accuracy: 1"(60mm)-2.5%,2"(100mm),3"(150mm)-1.6%
